Microsoft Exchange Mailbox Tenant to Tenant Migration Guide

Introduction

The Apps4.Pro Migration Manager guide explains, step by step, how to move different Exchange mailboxes (user, shared, group and in-place archive) from one Microsoft 365 tenant to another Microsoft 365 tenant.

It covers all essential components of Office 365 Exchange Online Mailbox migration, including emails, folders, calendars, contacts, tasks, rules, and attachments, ensuring a seamless transfer without any data loss.

Apps4.Pro Migration Manager also supports migrating emails based on selected date ranges, allowing you to transfer only the emails within the specified timeframe.

Scope of Mailbox Migration

The migrated and non-migrated items are listed below for Office 365 Mailbox Migration.

Mailbox

  • Inbox
  • Drafts
  • Sent Items
  • Deleted Items
  • Junk Email
  • Notes (Notes color, height & width are not migrated)
  • Custom Folders
  • Parent and subfolders

Mail Features

  • Category
  • Read/Unread status
  • Flag status
  • Pin/Unpin
  • Attachments as a copy
  • Inline images
  • Email Headers -> To, cc, bcc
  • All Formatting in Mail Body
  • Importance
  • Date Time preview (Creation/Updation date for Draft mail not supported)
  • Read receipt and delivery Receipt mails
  • Threaded mail
  • Subject
  • Body
  • Like option
  • Emoji
  • Encrypt & Permission
  • Sensitivity
  • Notes
  • Meeting Request, Response and Cancellation

Contacts

  • Personal Contacts (Your Contacts)
  • Contact Lists (Your Contact Lists)
  • Custom Folders

Contact Features

  Primary contact Fields

  • First Name
  • Last Name

  Secondary contact Fields

  • Email Address 1
  • Email Address 2
  • Name
  • Phone
  • Work
  • Address

Tasks

  • Important Tasks
  • Planned Tasks
  • Tasks
  • Task Lists

Task Features

  • Reminder
  • Due Date
  • Recurrence
  • Category
  • Attachment
  • Notes
  • Steps (subtasks)
  • Add to my day
  • Completed/In completed status
  • Importance status
  • Recurrence (Daily, Weekdays, Weekly, Monthly, Yearly, Custom)

Calendar

  Calendar Types

  • Default Calendars
  • Custom Calendars
  • Calendars within Custom Calendar Groups

Event Features

  • Required Attendees
  • Optional Attendees
  • Start Date Time / End Date Time
  • Start Time Zone / End Time Zone
  • Rooms (or) Location
  • All Day
  • Team Meeting
  • Reminder
  • Recurrence
  • Preferences
  • Note
  • Attachment as local copy
  • Busy status
  • Response options
  • Request responses
  • Categorize
  • All Formatting in Event notes

Mailbox

  • Team chat history
  • Recoverable Items
  • Snoozed
  • Public folder
  • Archive Rules

Mail Features

  • Default/custom/user-level permissions
  • Default retention tags and Default Archive tags
  • Custom retention tags and Custom Archive tags (Tag is set to “Use Parent Folder Policy” in target)
  • Attachments as OneDrive link (Link will refer to source domain only)
  • Meeting Request, Meeting Response, Meeting Cancellation
  • Snooze
  • Insert Signature

Contacts

  • Organization

Mail Folder Features

  • Folder Permissions
  • Advanced option -> Archive & Retention Policy Tags (Default)

Tasks

  • Assigned to me
  • Flagged Email
  • Task List Groups
  • Task Order
  • Sort Order

Task List Options

  • Sharing Options
  • Theme

Calendar

   Calendar Types

  • Calendar from Directory
  • Other Calendars, People’s Calendars
  • Custom Calendar Groups (Calendars within them will be migrated)
  • Birthday Events (It will be added automatically if we migrate contacts)
  • Holidays Calendar (It will be added automatically if we migrate contacts)

  Calendar Features

  • Sharing and Permissions
  • Color
  • Charm

Event Features

  • Allow Forwarding
  • Hide Attendee list

Rules:

Conditions:

  • Before
  • After
  • I’m mentioned in the message
  • External
  • Apply to all messages

Actions:

  • Pin to top
  • Clear categories
  • Clear flag
  • Complete flag
  • Flag message
  • Display desktop alert
  • Play a sound

Limitations

  • Migrated calendars will appear as custom calendars instead of under Other Calendars.
  • Hidden Mails / Folders: System-generated or hidden folders will not be migrated.
  • Calendar Meeting Links: Meeting links will reference the Source Tenant and will not function in the Target Tenant. You will need to manually resend the events for them to work correctly in the Target.

Roles & Licenses for Mailbox Migration

  • License: All the users scoped for migration should have valid Microsoft 365 / Office 365 License with “Exchange Online” app enabled in both Source and Target tenant.
  • Role: Both the Source and Target connection configuration Accounts can be a normal user and need Admin consent for delegated permissions.
  • Subscription: Source or Target tenant should have a Pay-As-You-Go (PAYG) Subscription to create Azure Storage Account.

Admin Consent for Delegated Permissions are required for Apps4.Pro to securely access and migrate data across Microsoft 365 workloads. These permissions facilitate authentication and authorization, ensuring a smooth migration while maintaining data integrity.

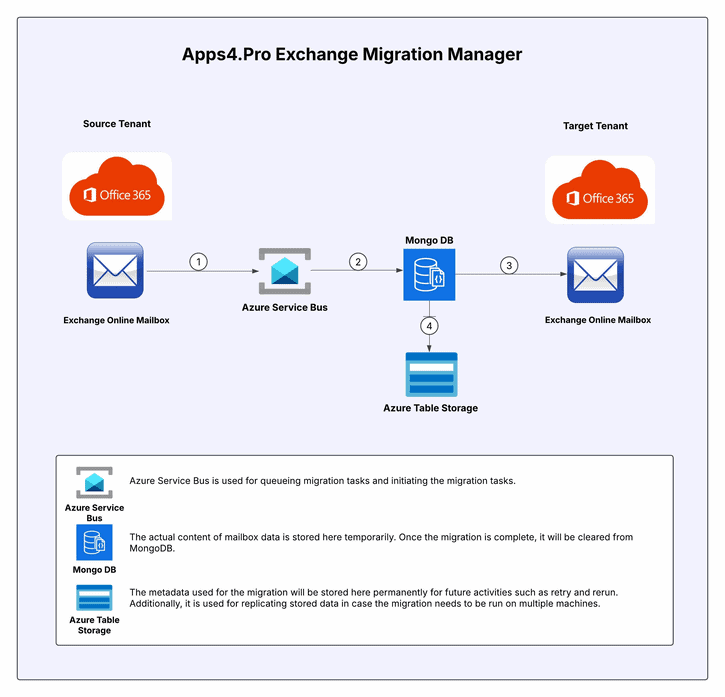

Architecture Diagram

Apps4.Pro Exchange to Exchange online Migration architecture diagram showing data flow between source and target tenants

Mailbox Inventory Report

Follow the below steps to export the Inventory Report of source tenant personal mailbox and shared mailbox storage size.

Step 1 : Open Windows PowerShell ISE as run as administrator

Step 2 : Download and open the attached script from PowerShell

Script File Link :  GetPersonalMailboxStorage.ps1

Step 3 : Update the $mailboxStorageReportPath variable with the local “path to export the mailbox details” in the script.

Step 4 : Execute the script, and once it runs successfully, you will find the csv file saved in the location specified in the $mailboxStorageReportPath variable within the script.

Note:

Ensure the script is executed using an account that holds either the “Exchange Admin” role or the “Global Admin” role for proper permissions.

Sample Output file : PersonalAndSharedMailboxStorageReport.csv

Requirements for Mailbox Migration

Minimum System Requirements

Azure VM with following specifications

  • 4 core CPU
  • 16 GB RAM
  • Windows 10 or above
  • Region of VM must be same as Target tenant’s Data Center Location
  • Docker latest version installed

Other Requirements

You would also need to prepare the items below to migrate Exchange Online content. The configuration of these items is explained in detail in the following part of the document.

  • Create Azure Storage Account: Required to store Migration Data such as Task details, Migration Summary details and Error logs.
  • Enable Archive Mailbox and Retention Policy [OPTIONAL]: Required only when Archive Mailboxes are part of your Migration Scope.
  • Increase default mail attachment size: Execute PowerShell script to Increase default mail attachment size in Source and Target tenants.

Pre-Migration Setup for Mailbox Migration

1. Create Azure Storage Account and Get Connection String

Note:

The Azure Storage Account must be created with same region as Target tenant’s Data Center Location.

Follow the steps below to create Azure Storage Account

Step 1: Login to Azure Portal using the link below.

https://portal.azure.com

Step 2: Search for “Storage Accounts” and click on it

Step 3: Click on “+ Create” button

Step 4: Fill in the required details as mentioned below, and click “Review + create”

Subscription – Valid subscription that the logged in account has access

Resource group – New dedicated resource group for Exchange migration

Storage Account name – Any unique name

Region – Select Target tenant region

Performance – Standard (Default)

Redundancy – Locally – Redundant Storage (LRS)

Step 5: Click on Create and wait for a few seconds for Deployment.

Step 6: From the left side menu, scroll up and expand “Security + Networking”. Click on “Access Keys”.

Copy the “Connection String” under “key1”. Copy and note this value in a notepad which is required to input in Apps4.Pro Migration Manager after installation.

2. Pre-requisite Setup for Archive Mailbox Migration

Note:

This Step is OPTIONAL. It is required only when Archive Mailbox is part of your Migration Scope.

Enable Archive Mailbox for the Target users

Follow the below steps for all the Scoped Target users for whom Archive Mailbox is part of the Migration scope.

  • Go to “Exchange Admin center” in target tenant
  • From the left side Menu, navigate to Recipients -> Mailboxes
  • Click on specific User Mailbox
  • Go to “Others” tab
  • Click “Manage mailbox archive” option
  • Enable “Mailbox archive status” option
  • Click “Save”

Apply retention policy in Target Tenant

You need to apply the retention policy in Target Tenant same as in Source Tenant. Follow the below steps.

Set MRM Retention tags and policies

  1. Go to Microsoft Purview Compliance Portal using below link https://purview.microsoft.com
  2. From the left side menu, Click on “Solutions”
  3. Click on “Data Lifecycle Management”
  4. Under “Exchange (legacy)” section, Click “MRM Retention tags”.
  5. Verify if the listed Retention tags and its properties are same as Source Tenant. If not, you need to update it manually.
  6. Now, click “MRM Retention policies”.
  7. Verify if the listed Retention Policies and its tags are same as Source Tenant. If not, you need to edit and configure it manually.

Set Retention policy for Target User Mailboxes

Repeat the below steps for all the Target Users in Scope

  1. Go to Exchange admin center.
  2. Under “Recipients” section, click on “Mailboxes”.
  3. Click on specific mailbox, Go to “Mailbox” tab.
  4. Under “Retention policy”, click “Manage mailbox policies”.
  5. Set the “Retention policy” value same as Source Mailbox.

3. Increase default mail attachment size in Source and Target tenants

To increase mailbox attachment size for the required users in the Source and Target tenants, follow the below steps.

Step 1: Open Windows PowerShell ISE as ‘Run as administrator’

Step 2: Prepare a CSV containing the mailbox UPN List

Sample CSV Input File Format:

Sample CSV file to add User Principal Names to increase default mail attachment size

Step 3: Download and open the attached script from PowerShell

Script to increase attachment size limit: IncreaseDefaultAttachmentSize-Exchange.ps1

Note:

In this script, the size is set to the maximum size of 150 MB.

Step 4: Replace the $csvPath value with the CSV file path prepared in Step 2.

Step 5: Run  the script using user with the “Global Admin” or “Exchange Admin” role

Note:

By default, Exchange Online mailboxes have a 36 MB attachment size limit. However, users may have increased this limit to upload larger attachments. You must increase the attachment size limit to the maximum limit.

  • On Target mailboxes, to upload attachments exceeding the default size.
  • On Source mailboxes, to successfully read attachments exceeding the default size.

4. Sign-in & Setup Process

Contact us at presales@apps4.pro for the tool link and open it in a web browser.

Pre-requisite Configuration

  1. Install the latest Docker build on the VM.
  2. Extract the downloaded zip file inside the VM.
  3. Run Start-mm app.ps1 inside the extracted using PowerShell.
  4. Choose Exchange workload.
  5. Select the azure application creation option. (This creates a multi-tenant azure application used for the migration. Permission will be added once the consents are provided)
  6. Choose Table Storage.
  7. Once the process is completed you can proceed with the sign-in.

Initial Sign-in Configuration

Login using any of the below options:

  • Option 1: Users with existing account can sign-in with their email account and enter the code received in the mail.
  • Option 2: First-time users can create a new account by clicking “No account? Create one” link and enter the code received in the mail.
  • Option 3: First-time users can also create a new account by clicking “Sign in with Microsoft Work or School Account” link and enter the code received in the mail.

Required Permissions:

PermissionJustification
Sign in and read user profileAllows you to sign in to the app with your organizational account and let the app read your profile. It also allows the app to read basic company information.
Maintain access to data you have given it access toAllows the app to see and update the data you gave it access to, even when you are not currently using the app. This does not give the app any additional permissions.

5. Create Organization

  1. Give a name for your organization.
  2. Click ‘Create Organization’.
  3. You can also Invite users to perform the migration.
    • Invitees will receive the email where they can access the portal and perform the migration.

6. Source & Target Connection Setup

1. Source Connection

  • Navigate to the Tenants tab, then click ‘Add Tenant’ to configure source.
  • Sign-in using the Source Service Account.

2. Admin Consent for Source Service Account

  • Click on the added Tenant.
  • Grant consent for the permissions listed.
    • Core.Basic
    • Exchange.Basic
Option 1: Grant Consent using the Consent URL (If the Service Account is a normal user with minimum privileges)
  • Click on option ‘Copy Consent URL’ to copy the admin consent URL to your clipboard.
  • Share the copied URL with the Global Administrator of the Source Tenant, and request them to follow the steps below:
    • Open the consent URL in a web browser.
    • Sign in using a Global Administrator Account.
    • Select the checkbox “Consent on behalf of your organization.” and Accept.
Option 2: Grant Consent from the tool (If the Service Account is a Global Administrator)

If the Service Account is a Global Administrator, you can directly grant consent from the tool by following these steps:

  • Click the “Grant Consent” button.
  • Sign in using the Global Administrator Account.
  • Review the requested permissions.
  • Click Accept to grant the required delegated permissions.

3. Login with Service Account

Once the consent in granted, Login once with the Service Account.

4. Target Connection

  • Click ‘Add Tenant’ to configure target.
  • Sign-in using the Target Service Account.

5. Admin Consent for Target Service Account

  • Click on the added Tenant.
  • Grant consent for the permissions listed.
    • Core.Basic
    • Exchange.High

6. Login with Service Account

Once the consent in granted, Login once with the Service Account to get the token ID.

7. Create Project

  1. Navigate to Projects tab
  2. Click Create Project
  3. Enter a Project Name and description
  4. Choose the Source and Target Tenants
  5. Select Workloads >> Exchange
  6. Grant Consent if not granted earlier during account setup
  7. Review the details and click ‘Finish‘

8. Discover & Map Users

To facilitate the migration of mail collaborators and permissions from the source tenant to the target tenant, it is necessary to map users and Office365 groups accordingly.

Discover Users

Follow the below steps to discover the Source Tenant-level Users.

  • Click on the created Project.
  • Click Exchange panel.
  • Move to the Users tab.
  • Use any of the Discover options to list all source users.
    • Discover From Selected: Select an user from the listed tenant-level users.
    • Discover From CSV: Discover users added in the CSV(Source ID/UPN).
    • Discover All: Discover all the users.

Auto-Map Users

Post discovery, auto-map the users with the target users using any of the below options.

Map by

  • Display Name
  • User Principal Name
  • Mail

(OR)

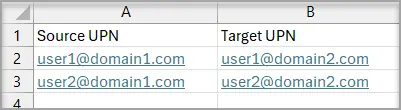

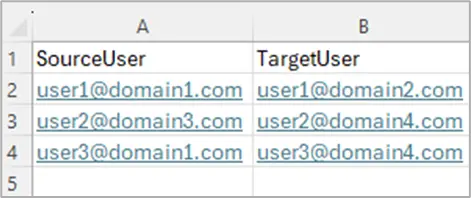

  • Map from CSV

Export Users

In the Users tab, click >> Export All to export all the discovered and matched users in an excel format.

Sample Tenant-level Users Export Report

9. Discover & Map Groups

To facilitate the migration of mail collaborators and permissions from the source tenant to the target tenant, it is necessary to map Office365 groups accordingly.

Discover Groups

Follow the below steps to discover the Source Tenant-level Groups.

  • Move to the Groups tab.
  • Use any of the Discover options to list all source groups.
    • Discover From Selected: Select a group from the listed tenant-level groups.
    • Discover From CSV: Discover users added in the CSV(Source ID/Source Mail).
    • Discover All: Discover all the groups.

Auto-Map Groups

Post discovery, auto-map the source groups with the target groups using any of the below options.

Map by

  • Group Name
  • Email
  • Mail Nick Name

(OR)

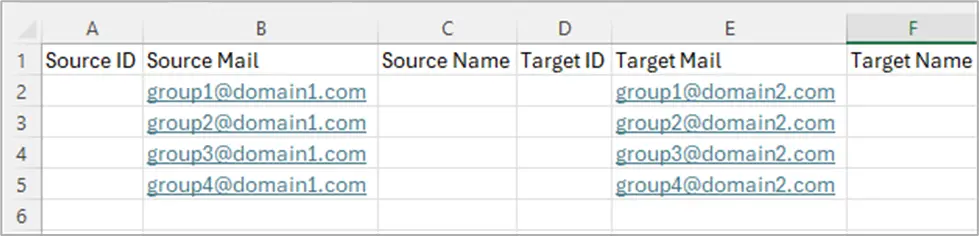

  • Map from CSV

Export Groups

In the Groups tab, click >> Export All to export all the discovered and matched groups in an excel format.

Sample Tenant-level Groups Export Report

10. Discover Mailboxes

Upon completion of user and group discovery, discover all the latest user mailboxes at the Tenant-level.

  1. Proceed to Mailbox tab.
  2. Option 1: Discover all matched User Mailboxes
    • Select “Discover” drop-down >> Discover All User Mailboxes: Use this option to retrieve all the matched user mailboxes available in the source tenant.
  3. Option 2: Discover only selected User Mailboxes.
    • Discover Selected User Mailboxes: Select this option to discover only the selected user mails.

Discovering Mailboxes pulls the basic details of the Mail, such as Mail name, Mail, Target Account, Mail type – User/Group/Archive.

11. Collect Metrics

Use “Collect Metrics” option to pull additional Mailbox details, including:

  • Number of
    • Mails
    • Calendars
    • Contacts
    • Tasks
    • Rules
  • Storage Availability
  • Issues
    • Source/Target License – Did not find licenses for current user
    • File Size exceededUnsupported File
    • Unsupported Rule

You can choose to Collect Metrics of all the listed mailboxes or a specific subset, by selecting from the listed mailboxes.

Note:

We recommend running a small pilot migration before moving all Tenant-level mailboxes, to validate your setup and measure throughput.

Once all the above preparatory steps are done, you are ready to create a Migration Task.

Start Mailbox Migration

  1. Navigate to Mailbox tab.
  2. Select all Mailboxes Or few of the Mailboxes and click ‘Migrate‘.
  3. Enter a Workflow Name.
  4. Click Start Migration.
  5. The system will now generate a Workflow and start migration.
  6. From Workflow tab, you can monitor the progress of the workflow.

How to view Migration Task Status

To view the Migration Task Status of Mailbox Migration, follow the below steps:

  1. Navigate to Summary tab.
  2. Verify the Migration status of the mailbox.
  3. Check whether the Migration status is Completed / In Progress / Completed with error.

How to perform Incremental Migration?

The Rerun function enables incremental migration for newly added items in the Source User’s Mailbox after the initial migration.

Steps to Perform Incremental Migration:

  1. Navigate to the Mailbox tab.
  2. Select the mailboxes with Completed status that you want to rerun.
  3. Click Migrate.
  4. Enter a Workflow Name.
  5. Verify that the Migrated(Rerun) checkbox is automatically selected. If it is not selected, manually enable it.
  6. Click ‘Start Migration’ to initiate the rerun process.
  7. From Summary tab, review migration status of the rerun workflow.

If the columns “FolderErrorCount” & “ItemErrorCount” has a non-zero number of errors, review the errors with the support team before proceeding with the Incremental Migration.

How to Retry a Mailbox Migration?

The Retry function helps resolve errors when a mailbox migration is failed or completed with an error.

Steps to Retry a Task:

  1. Navigate to Mailbox tab.
  2. Identify mailboxes with CompletedWithError status.
  3. Select the Mailbox(s) you want to retry.
  4. Click ‘Migrate’.
  5. Enter a Workflow Name.
  6. Verify that the Failed(retry) checkbox is automatically selected. If it is not selected, manually enable it.
  7. Click ‘Start Migration’ to initiate the retry process.
  8. From Summary tab, review migration status of the retried workflow.

Troubleshoot

How to Identify and Export Migration Errors?

To identify the cause of migration errors and retry the failed mailbox migration, follow these steps:

  1. Navigate to the Summary tab.
  2. Identify the mailbox with CompletedWithError status.
  3. Click the dropdown icon next to the affected user’s name to expand the details.
  4. Click the Export Error option to download the error details.
  5. Review the exported error report and identify the cause of the migration failure.
  6. After addressing the issue, navigate to the Mailbox tab.
  7. Select the mailbox with CompletedWithError status.
  8. Click Migrate and follow the retry migration steps to restart the migration.

Reports

How to Export the Migration Summary Report?

To export the Migration Summary Report, follow these steps:

  1. Navigate to the Summary tab.
  2. Click the three-dot (⋮) menu on the page.
  3. Select Export All to export the complete migration summary.

Conclusion

In summary, using Apps4.Pro Migration Manager for Exchange Online Mailbox migration ensures a smooth and effective transfer of mailbox data, including emails, folders, calendars, contacts, rules, and tasks. By following the outlined steps, you can confidently migrate Exchange mailbox content between Office 365 tenants. For further assistance or inquiries, refer to our FAQ or contact our support team at support@jijitechnologies.com.

FAQs

The License and Roles required to perform Exchange Online Mailbox Migration are as below:

  • License : All the users scoped for migration should have valid Microsoft 365/Office 365 License with “Exchange Online” app enabled in both Source and Target tenant.

  • Role : Both the Source and Target connection configuration accounts can be a normal user and need Admin consent – Admin consent can be granted via a generated URL in the application.

  • Subscription : Source or Target tenant should have a Pay-As-You-Go (PAYG) Subscription to create Azure Storage Account.
Admins can provide Admin Consent simply by clicking on the consent URL. For further details, please contact us at presales@apps4.pro

  • Register and configure Azure AD apps in both tenants with required API permissions.
  • Set up a storage account in the target tenant for temporary data storage.
  • Assign Global or Migration Admin roles in both tenants.
  • Ensure all source and target mailboxes are active and ready.
  • Download and configure Apps4.Pro Migration Manager with tenant credentials.

Follow the below steps to export the Inventory Report of source tenant personal mailbox and shared mailbox storage size.

Step 1 : Open Windows PowerShell ISE as run as administrator

Step 2 : Download and open the attached script from PowerShell

Script File Link:  GetPersonalMailboxStorage.ps1

Step 3 : Update the $mailboxStorageReportPath variable with the local “path to export the mailbox details” in the script.

Step 4 : Execute the script, and once it runs successfully, you will find the csv file saved in the location specified in the $mailboxStorageReportPath variable within the script.

Ensure the script is executed using an account that holds either the “Exchange Admin” role or the “Global Admin” role for proper permissions.

Sample Output file : PersonalAndSharedMailboxStorageReport.csv

  1. Go to Exchange admin center
  2. Select the user
  3. Click on the ‘Others’ tab
  4. Enable archive mailbox under the ‘Mailbox archive’ option.

Navigate to the Mapping tab, and under the USERS section, click Sync to retrieve all users in the tenant.

Exchange >> SOURCE >> ‘Get Latest’ option will retrieve the latest data from all mailboxes that includes any newly created mailboxes.

  • Download and set up the migration tool with tenant credentials.
  • Generate a pre-migration report to identify data for migration.
  • Map Source and Target tenant users.
  • Select Mailboxes, configure settings, and start the migration.
  • Monitor progress and confirm successful migration.

The Source Mailbox remains active, and users can still access it if needed during the Migration Process, ensuring that no data is lost.

The Rerun function enables incremental migration for newly added items in the Source User’s Mailbox after the initial migration.

Steps to Perform Incremental Migration:

  1. Navigate to the Mailbox tab.
  2. Select the mailboxes with Completed status that you want to rerun.
  3. Click Migrate.
  4. Enter a Workflow Name.
  5. Verify that the Migrated(Rerun) checkbox is automatically selected. If it is not selected, manually enable it.
  6. Click ‘Start Migration’ to initiate the rerun process.

If the columns “FolderErrorCount” & “ItemErrorCount” has a non-zero number of errors, review the errors with the support team before proceeding with the Incremental Migration.

The duration of an Exchange Online Mailbox Migration depends on factors such as mailbox size, the number of mailboxes, and network speed. Individual mailboxes may take minutes to hours, while larger migrations can take some days.

Yes, Apps4.Pro Migration Manager allows you to selectively migrate specific data like emails, contacts, calendars, tasks, and rules, ensuring a tailored migration.

Yes, Apps4.Pro Migration Manager supports migrating emails from selected date ranges, allowing you to transfer only the emails within the specified timeframe.

  • Verify the mail domain in the target tenant.
  • Map and sync mailboxes with Apps4.Pro before the cut-over.
  • Perform a delta sync to transfer remaining data.
  • Mail flow and verify functionality.
  • Communicate with users about the transition.

Yes, our professional services team is available 24/7 to handle the migration process on your behalf. We operate under a signed NDA and perform each migration in a dedicated Azure virtual machine assigned to the specific customer.

Apps4.Pro is an ISO-certified organization, ensuring secure and compliant data handling.

Yes, Apps4.Pro Migration Manager offers multiple mapping options, including automatic mapping and mapping via CSV. These features allow you to efficiently map source mailboxes to destination mailboxes and transfer public folders or mailboxes.

Apps4.Pro provides post-migration Exchange Online validation and comparison reports, including migrated item counts, successful and failed items, helping IT teams verify migration completeness and identify data discrepancies.

Apps4.Pro provides real-time migration progress and status updates, allowing administrators to monitor mailbox migration activity, track completion, and review post-migration reports to verify the results.

To view the Migration Task Status of Mailbox Migration, follow the below steps:

  1. Navigate to Summary tab.
  2. Verify the Migration status of the mailbox.
  3. Check whether the Migration status is Completed / In Progress / Completed with error.
Table of Contents
1
Bot Logo

Apps4.Pro Bot

Hey! Ready to make your Microsoft 365 migration journey easier? Tell me what you are looking for.

What gets migrated?
I have a sales question
I am here for tech support
Learn about Apps4.Pro
